- Place of Origin: Chinese
- Brand Name: TONGHAI
- Model Number: CL28000B
- Weight: 105.000 kg
Packaging & Delivery
| Packaging Details: | wooden pallet or wooden case or as customers' requirement /truck landing gear |
| Delivery Detail: | 4~6 weeks after receipt of payment/truck landing gear |
1. Lead screw is rolled forming with extra-duty feature steel.
2. Reverse mount ability.
3. Gears are made of high grade alloy steel.
4. Double adjustable transfer real power in low gear
5. Dimension of connation meets TTMA. AAR specification
6. Static load, lift test and drop test accord with ABS specification.
7. Lead screw nut applies floating construction, easier for lift and longer persistence for use.

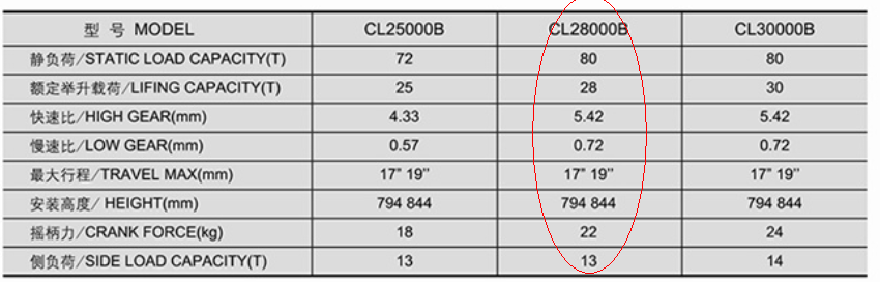

| MODEL | CL25000B | CL28000B | CL30000B |
| STATIC LOAD CAPACITY(T) | 72 | 80 | 80 |
| LIFTING CAPACITY(T) | 25 | 28 | 30 |
| HIGH GEAR(mm) | 4.33 | 5.42 | 5.42 |
| LOW GEAR(mm) | 0.57 | 0.72 | 0.72 |
| TRAVEL MAX(mm) | 17'' 19'' | 17'' 19'' | 17'' 19'' |
| HEIGHT(mm) | 794 844 | 794 844 | 794 844 |
| CRANK FORCE (kg) | 18 | 22 | 24 |
| SIDE LOAD CAPACITY (T) | 13 | 13 | 14 |
30% T/T as deposit, balance should be paid at sight of copy of B/L
Founded in 2005, Yangzhou Tonghai Special Purpose Vehicle Parts Co., Ltd. is located in Yangzhou, Jiangsu province, southeast of China.
We are a professional enterprise engaged in the manufacture and exportation of landing gears, air tank and related accessories.
1. Q: Do you offer samples and if they are free
A: Samples can be offered and sample costs the normal product value .But the sample charge could be refunded if the order is placed.
2. Q: Does the landing gear make big noises when it is working?
A: No,it doesn't .All our products are designed ,manufactured and quality tested strictly by professional before they are sent out of the factory.
3. Q: Can we pay a visit to your factory?
A: Sure. You are always welcomed here
1. We offer professional advice and quality trailer parts at low price.
2. Prompt delivery
3. 10 years experience of manufacture and exportation
4. Products are value for money
- Place of Origin: Chinese
- Brand Name: TONGHAI
- Model Number: CL28000B
- Weight: 105.000 kg
30% T/T as deposit, balance should be paid at sight of copy of B/L
